Water trap for cold weather operation
Trap keeps water, ice, crud & gunk from clogging the carb
With optional standard Filter, optional High Performance Filter, or without any optional air filter

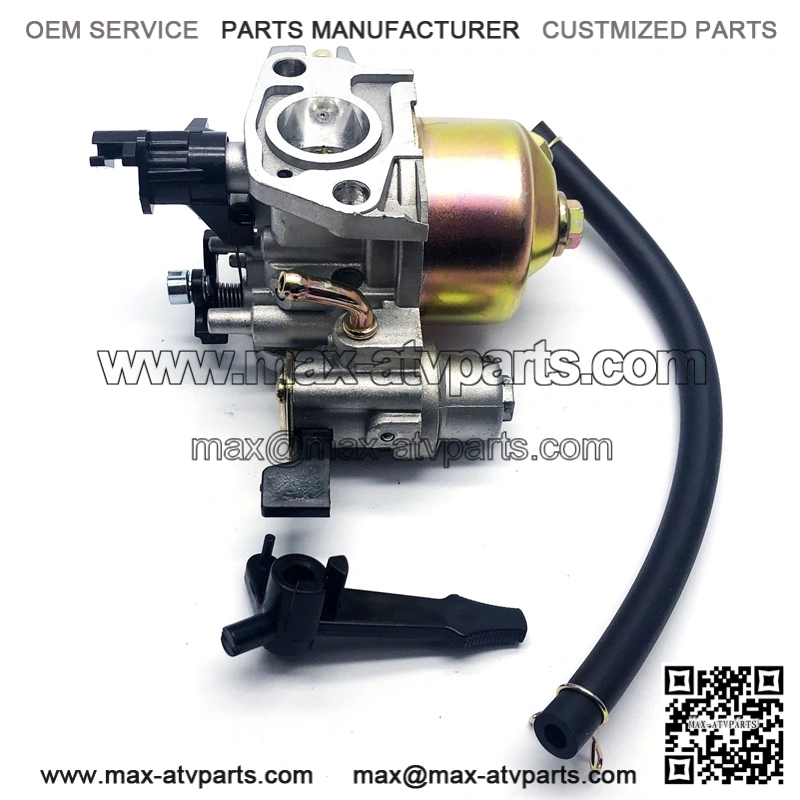

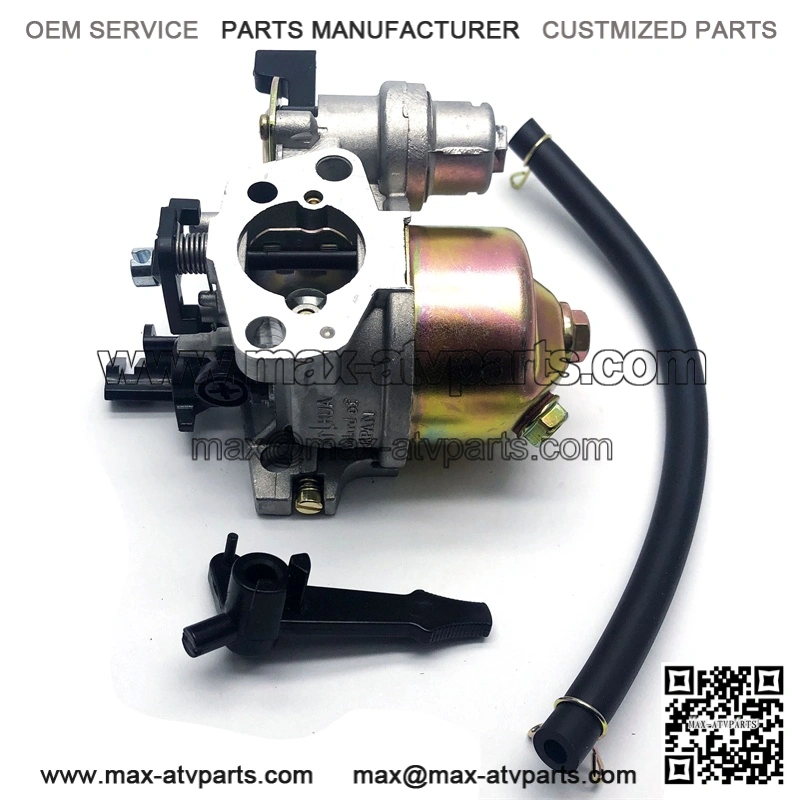

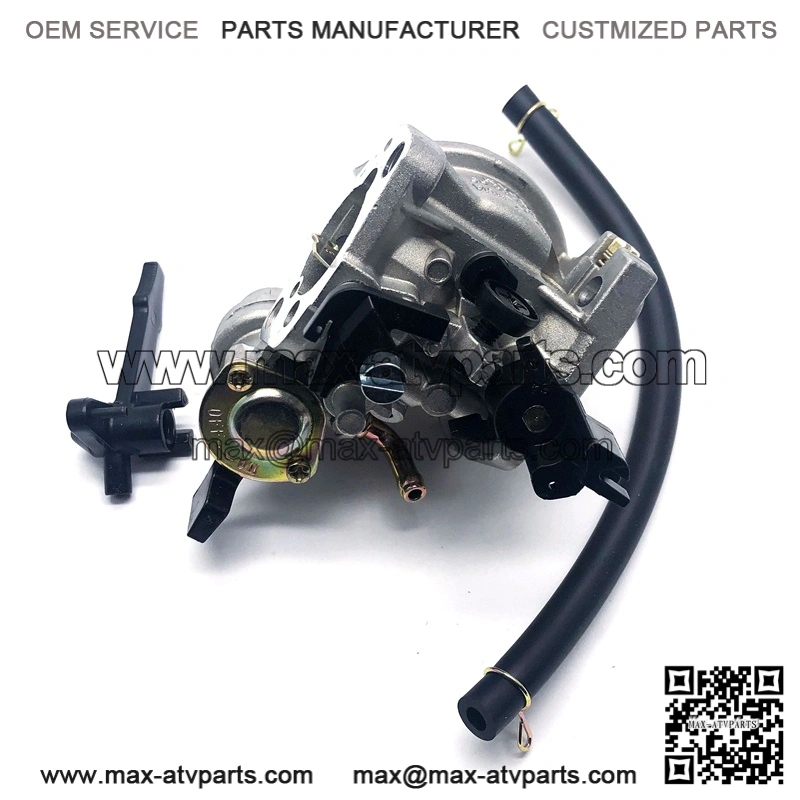

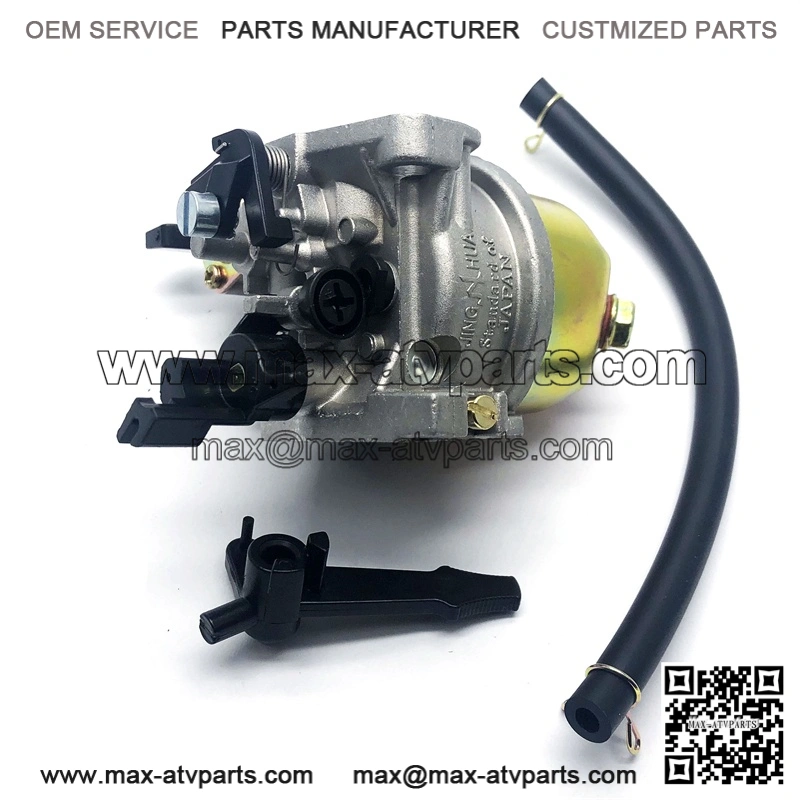

This carburetor is an aftermarket upgrade carburetor for use with GX200 style Honda Clone 6.5 Hp engines
Air intake diameter is 15/16″ (24 mm)
Specifications
Engine Size(s): 97cc; 163cc; 196cc
Engine Intake Inner Diameter: 19 mm
Air Intake Inner Diameter: 24 mm
Overall Depth: 5.4 cm
Overall Width: 8 cm
Overall Height: 10.5 cm
Center to Center Mounting Hole Distance: 43 mm
Mounting Holes Diameter: 6 mm
Choke: Manual Fuel Line Length: 16 cm +/-
Fuel Line Inner Diameter: 5 mm
Fuel Line Outer Diameter: 8 mm
Drain: No
Fuel Shutoff: Yes
Standard Filter:
Length: 100 mm
Width: 75 mm
Height: 70 mm
High Performance Filter:
Overall Diameter at Widest Point: 95 mm
Overall Diameter at Top: 85 mm
Rubber Intake Inner Diameter: 60 mm
Rubber Intake Outer Diameter: 74 mm
